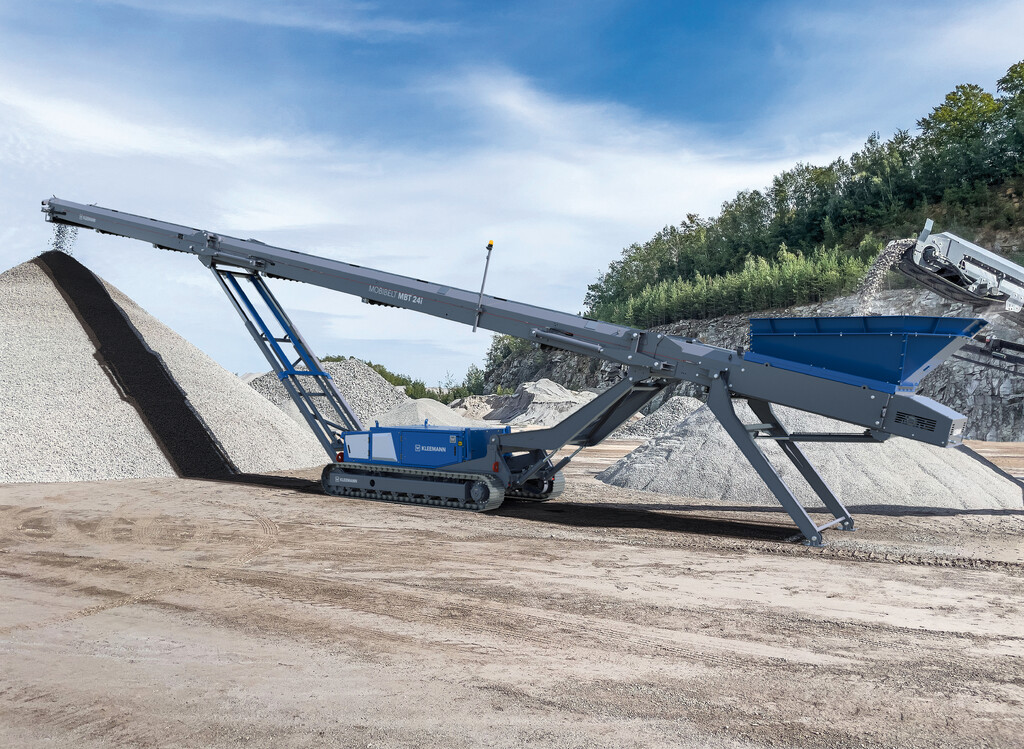

New MOBIBELT Mobile Stackers for Crushing/Screening Logistics
The new MOBIBELT MBT 20(i) and MBT 24(i) stackers from Kleemann flexibly extend the action radius of crushing and screening plants and thus make large stockpiles and improved work site logistics possible.
Both stackers are equipped with a large 1.6-yd3 (1.25 m3) feed hopper made of resistant Kleemann Resistant Steel, which permits the feeding of material with an edge length of up to 7.87 in (200 mm) without any problems. An optional hopper extension up to 3.3-yd3 (2.5 m3) is provided with an additional impact bar that prevents the direct impact of the feed material on the conveyor belt and thus reduces wear. Thanks to the hydraulically adjustable feed and discharge height, a fast set-up is possible and the stackers can be used flexibly behind screening and crushing plants with different discharge heights.
The MOBIBELT MBT 20(i) and MBT 24(i) have an SPECTIVE operating concept that makes intuitive operation of the machines possible. During a typical workday, the operator receives ideal support with a central operating position, local operation and the option of troubleshooting help via SPECTIVE CONNECT.
